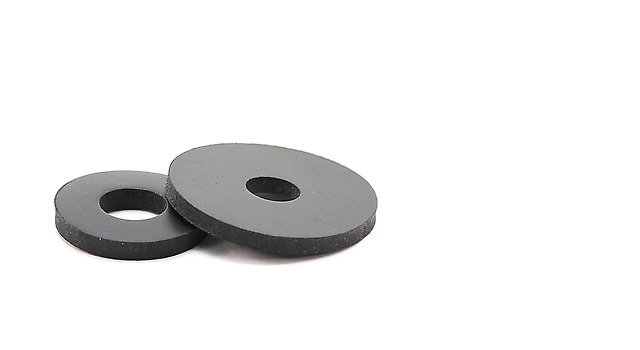

Rubber Washers
Below is our standard range of Rubber Washers.
We are a manufacturer, supplier and stockist of rubber washers. A washer distributes the pressure of the nut evenly over the surface to prevent damage to the surface or to ensure the nut presses against a smooth surface to reduce the chance it will gradually loosen.
We can also manufacture custom rubber washers to your specification.
We keep a large selection of moulded and punched rubber washers in stock. Most are stocked in one of Nitrile, Neoprene or EPDM but can be manufactured in any rubber listed in our materials section. Please see our Materials page for more information on the types of rubber we can offer.
- Same day despatch on stock items.
- 5 - 7 working days average lead time for made to order standard parts.
- Minimum order value of £30 (plus carriage and VAT - subject to stock)
- Some parts may be subject to minimum order quantities should they not be in stock.
Prices and Availability
Contact our sales team now for prices and availability, by email to sales@grommets.co.uk or call +44 (0)1273 494 400.
Alternatively please use our contact form or online chat facility.
Measuring Guide
Need help measuring for the right sized part?
Please use the guide to help you measure dimensions of the Rubber Washers you require. Then select a product code from the list that may be suitable for your measurements.
Measuring Guide
Rubber Washers
Please use the diagram above to help you measure the a, b, c dimensions of the Rubber Washers you require. Using these measurements as a guide you can then select a product code from the list that may be suitable for your requirements.
All of our part numbers are made up of the three a, b, c dimensions of the part itself.
Washers Product List/Sizes
Our Washers are listed in order of their outer diameter size, starting with the smallest.
Use your ‘a’ dimension to find a suitable part in our list. All our part numbers are made up of the three a, b, c dimensions of the part itself.
Outer Diameter
7.0 to 13.9mm
Outer Diameter
14.0 to 19.9mm
Outer Diameter
20.0 to 29.9mm
Outer Diameter
30.0 to 39.9mm
Outer Diameter
40.0 to 49.9mm
Outer Diameter
50.0 to 64.9mm
Outer Diameter
65.0 to 150.0mm
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G13-RW70-30-15 | 7.0 | 3.0 | 1.5 |
| G13-RW80-30-20 | 8.0 | 3.0 | 2.0 |
| G13-RW84-53-30 | 8.4 | 5.3 | 3.0 |
| G13-RW90-35-20 | 9.0 | 3.5 | 2.0 |
| G13-RW100-50-20 | 10.0 | 5.0 | 2.0 |
| G13-RW100-60-10 | 10.0 | 6.0 | 1.0 |
| G13-RW100-70-10 | 10.0 | 7.0 | 1.0 |
| G13-RW105-43-15 | 10.5 | 4.3 | 1.5 |
| G13-RW110-30-30 | 11.0 | 3.0 | 3.0 |
| G13-RW110-35-40 | 11.0 | 3.5 | 4.0 |
| G13-RW110-55-15 | 11.0 | 5.5 | 1.5 |
| G13-RW115-10-15 | 11.5 | 1.0 | 1.5 |
| G13-RW120-40-15 | 12.0 | 4.0 | 1.5 |
| G13-RW120-40-30 | 12.0 | 4.0 | 3.0 |
| G13-RW120-50-15 | 12.0 | 5.0 | 1.5 |
| G13-RW120-50-20 | 12.0 | 5.0 | 2.0 |
| G13-RW120-50-40 | 12.0 | 5.0 | 4.0 |
| G13-RW120-60-20 | 12.0 | 6.0 | 2.0 |
| G13-RW127-64-15 | 12.7 | 6.4 | 1.5 |
| G13-RW127-80-15 | 12.7 | 8.0 | 1.5 |
| G13-RW134-80-10 | 13.4 | 8.0 | 1.0 |
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G13-RW140-40-10 | 14.0 | 4.0 | 1.0 |
| G13-RW140-40-13 | 14.0 | 4.0 | 1.3 |
| G13-RW140-40-30 | 14.0 | 4.0 | 3.0 |
| G13-RW145-70-40 | 14.0 | 7.0 | 4.0 |
| G13-RW145-100-40 | 14.5 | 10.0 | 4.0 |
| G13-RW150-40-20 | 15.0 | 4.0 | 2.0 |
| G13-RW150-60-10 | 15.0 | 6.0 | 1.0 |
| G13-RW150-60-20 | 15.0 | 6.0 | 2.0 |
| G13-RW150-100-20 | 15.0 | 10.0 | 2.0 |
| G13-RW160-20-25 | 16.0 | 2.0 | 2.5 |
| G13-RW160-40-30 | 16.0 | 4.0 | 3.0 |
| G13-RW160-55-15 | 16.0 | 5.5 | 1.5 |
| G13-RW160-55-30 | 16.0 | 5.5 | 3.0 |
| G13-RW160-72-30 | 16.0 | 7.2 | 3.0 |
| G13-RW160-80-10 | 16.0 | 8.0 | 1.0 |
| G13-RW160-100-10 | 16.0 | 10.0 | 1.0 |
| G13-RW160-100-15 | 16.0 | 10.0 | 1.5 |
| G13-RW160-100-20 | 16.0 | 10.0 | 2.0 |
| G13-RW170-65-15 | 17.0 | 6.5 | 1.5 |
| G13-RW170-65-20 | 17.0 | 6.5 | 2.0 |
| G13-RW170-90-50 | 17.0 | 9.0 | 5.0 |
| G13-RW173-40-30 | 17.3 | 4.0 | 3.0 |
| G13-RW173-67-30 | 17.3 | 6.7 | 3.0 |
| G13-RW180-63-30 | 18.0 | 6.3 | 3.0 |
| G13-RW180-80-20 | 18.0 | 8.0 | 2.0 |
| G13-RW180-90-25 | 18.0 | 9.0 | 2.5 |
| G13-RW180-93-30 | 18.0 | 9.3 | 3.0 |
| G13-RW180-120-10 | 18.0 | 12.0 | 1.0 |
| G13-RW180-120-15 | 18.0 | 12.0 | 1.5 |
| G13-RW180-120-20 | 18.0 | 12.0 | 2.0 |
| G13-RW180-120-30 | 18.0 | 12.0 | 3.0 |
| G13-RW185-70-25 | 18.5 | 7.0 | 2.5 |
| G13-RW185-90-20 | 18.5 | 9.0 | 2.0 |
| G13-RW185-90-40 | 18.5 | 9.0 | 4.0 |
| G13-RW190-48-40 | 19.0 | 4.8 | 4.0 |
| G13-RW190-60-10 | 19.0 | 6.0 | 1.0 |
| G13-RW190-95-18 | 19.0 | 9.5 | 1.8 |
| G13-RW190-95-20 | 19.0 | 9.5 | 2.0 |
| G13-RW190-103-30 | 19.0 | 10.3 | 3.0 |
| G13-RW190-105-16 | 19.0 | 10.5 | 1.6 |
| G13-RW191-48-45 | 19.1 | 4.8 | 4.5 |
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G13-RW200-40-10 | 20.0 | 4.0 | 1.0 |
| G13-RW200-40-30 | 20.0 | 4.0 | 3.0 |
| G13-RW200-40-50 | 20.0 | 4.0 | 5.0 |
| G13-RW200-60-20 | 20.0 | 6.0 | 2.0 |
| G13-RW200-60-40 | 20.0 | 6.0 | 4.0 |
| G13-RW200-65-25 | 20.0 | 6.5 | 2.5 |
| G13-RW200-80-20 | 20.0 | 8.0 | 2.0 |
| G13-RW200-100-15 | 20.0 | 10.0 | 1.5 |
| G13-RW200-105-30 | 20.0 | 10.5 | 3.0 |
| G13-RW200-120-10 | 20.0 | 12.0 | 1.0 |
| G13-RW200-127-25 | 20.0 | 12.7 | 2.5 |
| G13-RW200-127-50 | 20.0 | 12.7 | 5.0 |
| G13-RW210-120-40 | 21.0 | 12.0 | 4.0 |
| G13-RW210-125-40 | 21.0 | 12.5 | 4.0 |
| G13-RW210-150-30 | 21.0 | 15.0 | 3.0 |
| G13-RW215-50-15 | 21.5 | 5.0 | 1.5 |
| G13-RW215-50-30 | 21.5 | 5.0 | 3.0 |
| G13-RW220-40-30 | 22.0 | 4.0 | 3.0 |
| G13-RW220-95-80 | 22.0 | 9.5 | 8.0 |
| G13-RW220-150-10 | 22.0 | 15.0 | 1.0 |
| G13-RW220-160-30 | 22.0 | 16.0 | 3.0 |
| G13-RW230-90-50 | 23.0 | 9.0 | 5.0 |
| G13-RW230-160-10 | 23.0 | 16.0 | 1.0 |
| G13-RW230-160-20 | 23.0 | 16.0 | 2.0 |
| G13-RW235-200-10 | 23.5 | 20.0 | 1.0 |
| G13-RW240-105-10 | 24.0 | 10.5 | 1.0 |
| G13-RW240-110-30 | 24.0 | 11.0 | 3.0 |
| G13-RW240-125-10 | 24.0 | 12.5 | 1.0 |
| G13-RW240-135-10 | 24.0 | 13.5 | 1.0 |
| G13-RW240-150-30 | 24.0 | 15.0 | 3.0 |
| G13-RW240-150-60 | 24.0 | 15.0 | 6.0 |
| G13-RW240-170-20 | 24.0 | 17.0 | 2.0 |
| G13-RW250-53-50 | 25.0 | 5.3 | 5.0 |
| G13-RW250-65-10 | 25.0 | 6.5 | 1.0 |
| G13-RW250-65-25 | 25.0 | 6.5 | 2.5 |
| G13-RW250-65-30 | 25.0 | 6.5 | 3.0 |
| G13-RW250-70-30 | 25.0 | 7.0 | 3.0 |
| G13-RW250-75-90 | 25.0 | 7.5 | 9.0 |
| G13-RW250-75-100 | 25.0 | 7.5 | 10.0 |
| G13-RW250-80-10 | 25.0 | 8.0 | 1.0 |
| G13-RW250-80-30 | 25.0 | 8.0 | 3.0 |
| G13-RW250-80-50 | 25.0 | 8.0 | 5.0 |
| G13-RW250-85-15 | 25.0 | 8.5 | 1.5 |
| G13-RW250-85-20 | 25.0 | 8.5 | 2.0 |
| G13-RW250-100-10 | 25.0 | 10.0 | 1.0 |
| G13-RW250-100-30 | 25.0 | 10.0 | 3.0 |
| G13-RW250-120-15 | 25.0 | 12.0 | 1.5 |
| G13-RW250-150-10 | 25.0 | 15.0 | 1.0 |
| G13-RW250-150-15 | 25.0 | 15.0 | 1.5 |
| G13-RW250-150-20 | 25.0 | 15.0 | 2.0 |
| G13-RW250-150-25 | 25.0 | 15.0 | 2.5 |
| G13-RW250-170-30 | 25.0 | 17.0 | 3.0 |
| G13-RW250-183-30 | 25.0 | 18.3 | 3.0 |
| G13-RW250-200-15 | 25.0 | 20.0 | 1.5 |
| G13-RW254-120-20 | 25.4 | 12.0 | 2.0 |
| G13-RW255-130-18 | 25.5 | 13.0 | 1.8 |
| G13-RW255-130-20 | 25.5 | 13.0 | 2.0 |
| G13-RW260-70-30 | 26.0 | 7.0 | 3.0 |
| G13-RW260-200-30 | 26.0 | 20.0 | 3.0 |
| G13-RW270-170-40 | 27.0 | 17.0 | 4.0 |
| G13-RW270-200-30 | 27.0 | 20.0 | 3.0 |
| G13-RW270-205-10 | 27.0 | 20.5 | 1.0 |
| G13-RW280-110-30 | 28.0 | 11.0 | 3.0 |
| G13-RW290-160-40 | 29.0 | 16.0 | 4.0 |
| G13-RW290-200-50 | 29.0 | 20.0 | 5.0 |
| G13-RW290-200-70 | 29.0 | 20.0 | 7.0 |
| G13-RW290-230-20 | 29.0 | 23.0 | 2.0 |
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G13-RW300-60-15 | 30.0 | 6.0 | 1.5 |
| G13-RW300-64-60 | 30.0 | 6.4 | 6.0 |
| G13-RW300-100-20 | 30.0 | 10.0 | 2.0 |
| G13-RW300-100-50 | 30.0 | 10.0 | 5.0 |
| G13-RW300-105-30 | 30.0 | 10.5 | 3.0 |
| G13-RW300-105-60 | 30.0 | 10.5 | 6.0 |
| G13-RW300-110-20 | 30.0 | 11.0 | 2.0 |
| G13-RW-300-120-30 | 30.0 | 12.0 | 3.0 |
| G13-RW300-150-10 | 30.0 | 15.0 | 1.0 |
| G13-RW300-170-40 | 30.0 | 17.0 | 4.0 |
| G13-RW300-200-10 | 30.0 | 20.0 | 1.0 |
| G13-RW300-200-30 | 30.0 | 20.0 | 3.0 |
| G13-RW300-205-10 | 30.0 | 20.5 | 1.0 |
| G13-RW300-230-20 | 30.0 | 23.0 | 2.0 |
| G13-RW318-167-60 | 31.8 | 16.7 | 6.0 |
| G13-RW318-240-10 | 31.8 | 24.0 | 1.0 |
| G13-RW318-240-20 | 31.8 | 24.0 | 2.0 |
| G13-RW318-240-45 | 31.8 | 24.0 | 4.5 |
| G13-RW320-120-30 | 32.0 | 12.0 | 3.0 |
| G13-RW320-160-32 | 32.0 | 16.0 | 3.2 |
| G13-RW320-190-65 | 32.0 | 19.0 | 6.5 |
| G13-RW320-200-20 | 32.0 | 20.0 | 2.0 |
| G13-RW320-200-40 | 32.0 | 20.0 | 4.0 |
| G13-RW320-250-20 | 32.0 | 25.0 | 2.0 |
| G13-RW320-265-50 | 32.0 | 26.5 | 5.0 |
| G13-RW330-80-40 | 33.0 | 8.0 | 4.0 |
| G13-RW330-90-60 | 33.0 | 9.0 | 6.0 |
| G13-RW330-230-50 | 33.0 | 23.0 | 5.0 |
| G13-RW340-250-30 | 34.0 | 25.0 | 3.0 |
| G13-RW340-300-30 | 34.0 | 30.0 | 3.0 |
| G13-RW350-50-30 | 35.0 | 5.0 | 3.0 |
| G13-RW350-60-50 | 35.0 | 6.0 | 5.0 |
| G13-RW350-120-100 | 35.0 | 12.0 | 10.0 |
| G13-RW350-160-30 | 35.0 | 16.0 | 3.0 |
| G13-RW350-160-50 | 35.0 | 16.0 | 5.0 |
| G13-RW350-210-20 | 35.0 | 21.0 | 2.0 |
| G13-RW350-220-60 | 35.0 | 22.0 | 6.0 |
| G13-RW350-240-100 | 35.0 | 24.0 | 10.0 |
| G13-RW350-250-50 | 35.0 | 25.0 | 5.0 |
| G13-RW350-300-30 | 35.0 | 30.0 | 3.0 |
| G13-RW360-240-30 | 36.0 | 24.0 | 3.0 |
| G13-RW360-250-30 | 36.0 | 25.0 | 3.0 |
| G13-RW360-293-30 | 36.0 | 29.3 | 3.0 |
| G13-RW365-208-25 | 36.5 | 20.8 | 2.5 |
| G13-RW370-120-30 | 37.0 | 12.0 | 3.0 |
| G13-RW370-130-10 | 37.0 | 13.0 | 1.0 |
| G13-RW370-140-30 | 37.0 | 14.0 | 3.0 |
| G13-RW370-200-60 | 37.0 | 20.0 | 6.0 |
| G13-RW370-210-30 | 37.0 | 21.0 | 3.0 |
| G13-RW380-270-10 | 38.0 | 27.0 | 1.0 |
| G13-RW380-280-30 | 38.0 | 28.0 | 3.0 |
| G13-RW380-320-10 | 38.0 | 32.0 | 1.0 |
| G13-RW381-207-30 | 38.1 | 20.7 | 3.0 |
| G13-RW381-254-30 | 38.1 | 25.4 | 3.0 |
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G13-RW400-30-40 | 40.0 | 3.0 | 4.0 |
| G13-RW400-80-10 | 40.0 | 8.0 | 1.0 |
| G13-RW400-80-40 | 40.0 | 8.0 | 4.0 |
| G13-RW400-80-60 | 40.0 | 8.0 | 6.0 |
| G13-RW400-100-30 | 40.0 | 10.0 | 3.0 |
| G13-RW400-180-10 | 40.0 | 18.0 | 1.0 |
| G13-RW400-220-30 | 40.0 | 22.0 | 3.0 |
| G13-RW400-230-30 | 40.0 | 23.0 | 3.0 |
| G13-RW400-250-60 | 40.0 | 25.0 | 6.0 |
| G13-RW410-140-30 | 41.0 | 14.0 | 3.0 |
| G13-RW420-40-20 | 42.0 | 4.0 | 2.0 |
| G13-RW420-40-30 | 42.0 | 4.0 | 3.0 |
| G13-RW420-280-30 | 42.0 | 28.0 | 3.0 |
| G13-RW450-120-30 | 45.0 | 12.0 | 3.0 |
| G13-RW450-130-30 | 45.0 | 13.0 | 3.0 |
| G13-RW450-150-20 | 45.0 | 15.0 | 2.0 |
| G13-RW450-180-30 | 45.0 | 18.0 | 3.0 |
| G13-RW450-210-20 | 45.0 | 21.0 | 2.0 |
| G13-RW450-220-30 | 45.0 | 22.0 | 3.0 |
| G13-RW450-250-15 | 45.0 | 25.0 | 1.5 |
| G13-RW450-250-50 | 45.0 | 25.0 | 5.0 |
| G13-RW450-320-30 | 45.0 | 32.0 | 3.0 |
| G13-RW450-340-30 | 45.0 | 34.0 | 3.0 |
| G13-RW450-350-60 | 45.0 | 35.0 | 6.0 |
| G13-RW460-275-62 | 46.0 | 27.5 | 6.2 |
| G13-RW460-345-10 | 46.0 | 34.5 | 1.0 |
| G13-RW460-360-30 | 46.0 | 36.0 | 3.0 |
| G13-RW470-255-10 | 47.0 | 25.5 | 1.0 |
| G13-RW470-255-20 | 47.0 | 25.5 | 2.0 |
| G13-RW470-330-60 | 47.0 | 33.0 | 6.0 |
| G13-RW480-100-20 | 48.0 | 10.0 | 2.0 |
| G13-RW480-160-30 | 48.0 | 16.0 | 3.0 |
| G13-RW490-160-20 | 49.0 | 16.0 | 2.0 |
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G13-RW500-80-50 | 50.0 | 8.0 | 5.0 |
| G13-RW500-95-60 | 50.0 | 9.5 | 6.0 |
| G13-RW500-110-10 | 50.0 | 11.0 | 1.0 |
| G13-RW500-110-30 | 50.0 | 11.0 | 3.0 |
| G13-RW500-170-20 | 50.0 | 17.0 | 2.0 |
| G13-RW500-200-10 | 50.0 | 20.0 | 1.0 |
| G13-RW500-200-30 | 50.0 | 20.0 | 3.0 |
| G13-RW500-280-30 | 50.0 | 28.0 | 3.0 |
| G13-RW500-320-15 | 50.0 | 32.0 | 1.5 |
| G13-RW500-320-30 | 50.0 | 32.0 | 3.0 |
| G13-RW500-410-30 | 50.0 | 41.0 | 3.0 |
| G13-RW510-430-30 | 51.0 | 43.0 | 3.0 |
| G13-RW510-443-30 | 51.0 | 44.3 | 3.0 |
| G13-RW520-150-20 | 52.0 | 15.0 | 2.0 |
| G13-RW530-245-30 | 53.0 | 24.5 | 3.0 |
| G13-RW550-80-30 | 55.0 | 8.0 | 3.0 |
| G13-RW550-280-40 | 55.0 | 28.0 | 4.0 |
| G13-RW550-350-60 | 55.0 | 35.0 | 6.0 |
| G13-RW550-390-40 | 55.0 | 39.0 | 4.0 |
| G13-RW560-250-20 | 56.0 | 25.0 | 2.0 |
| G13-RW580-90-10 | 58.0 | 9.0 | 1.0 |
| G13-RW600-100-30 | 60.0 | 10.0 | 3.0 |
| G13-RW600-160-20 | 60.0 | 16.0 | 2.0 |
| G13-RW600-320-15 | 60.0 | 32.0 | 1.5 |
| G13-RW600-400-10 | 60.0 | 40.0 | 1.0 |
| G13-RW600-400-20 | 60.0 | 40.0 | 2.0 |
| G13-RW620-330-10 | 62.0 | 33.0 | 1.0 |
| G13-RW630-230-60 | 63.0 | 23.0 | 6.0 |
| G13-RW630-330-10 | 63.0 | 33.0 | 1.0 |
| G13-RW630-330-30 | 63.0 | 33.0 | 3.0 |
| G13-RW630-430-60 | 63.0 | 43.0 | 6.0 |
| G13-RW640-450-15 | 64.0 | 45.0 | 1.5 |
| G13-RW642-445-60 | 64.2 | 44.5 | 6.0 |
| G13-RW642-445-120 | 64.2 | 44.5 | 12.0 |
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G13-RW650-400-30 | 65.0 | 40.0 | 3.0 |
| G13-RW650-480-40 | 65.0 | 48.0 | 4.0 |
| G13-RW660-207-63 | 66.0 | 20.7 | 6.3 |
| G13-RW660-593-30 | 66.0 | 59.3 | 3.0 |
| G13-RW666-120-50 | 66.6 | 12.0 | 5.0 |
| G13-RW690-545-10 | 69.0 | 54.5 | 1.0 |
| G13-RW700-125-50 | 70.0 | 12.5 | 5.0 |
| G13-RW700-400-40 | 70.0 | 40.0 | 4.0 |
| G13-RW700-550-30 | 70.0 | 55.0 | 3.0 |
| G13-RW730-550-30 | 73.0 | 55.0 | 3.0 |
| G13-RW750-120-20 | 75.0 | 12.0 | 2.0 |
| G13-RW750-310-40 | 75.0 | 31.0 | 4.0 |
| G13-RW760-360-30 | 76.0 | 36.0 | 3.0 |
| G13-RW800-310-30 | 80.0 | 31.0 | 3.0 |
| G13-RW825-700-15 | 82.5 | 70.0 | 1.5 |
| G13-RW850-330-40 | 85.0 | 33.0 | 4.0 |
| G13-RW900-700-10 | 90.0 | 70.0 | 1.0 |
| G13-RW900-700-20 | 90.0 | 70.0 | 2.0 |
| G13-RW900-770-40 | 90.0 | 77.0 | 4.0 |
| G13-RW920-650-20 | 92.0 | 65.0 | 2.0 |
| G13-RW1000-850-30 | 100.0 | 85.0 | 3.0 |
| G13-RW1050-430-20 | 105.0 | 43.0 | 2.0 |
| G13-RW1220-508-30 | 122.0 | 50.8 | 3.0 |
| G13-RW1220-700-30 | 122.0 | 70.0 | 3.0 |
| G13-RW1400-1200-30 | 140.0 | 120.0 | 3.0 |
| G13-RW1500-650-100 | 150.0 | 65.0 | 10.0 |
